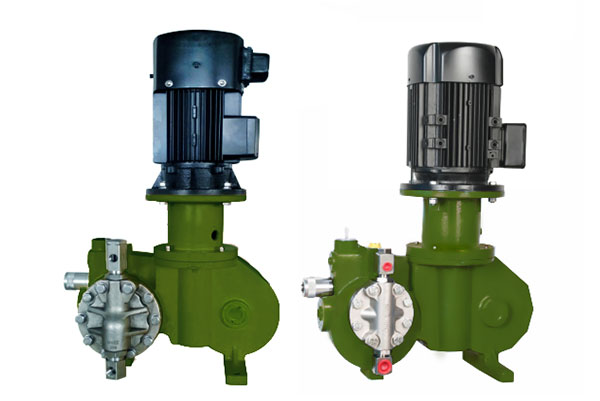

The main performance parameters
◎ Maximum flow: 659L/H.
◎ Maximum discharge pressure: 21lbar.
◎ The adjustment ratio is 10: 1, and the steady-state accuracy is ± 1%.
◎ The suction lifting height can reach 3m water column.
The main features of
Drive end
◎ Driven by eccentric mechanism, the mechanism is compact and the equipment installation space is small.
◎ Unique worm gear/worm structure ensures continuous and stable operation of mechanical driving parts.
◎ Tapered roller bearing at the bottom of worm ensures long-term stable operation of transmission mechanism under heavy load.
◎ For oil bath lubrication, only replace the lubricating oil regularly, and the lubricating system does not need special maintenance.
◎ All moving parts are lubricated by oil bath with long service life.
◎ Flow can be adjusted under shutdown or running conditions, and the adjustment mode can be manual, electric, pneumatic or frequency modulation.
Hydraulic end
◎ The wave pressure drives the diaphragm, which has a longer service life.
◎ High precision one-way check valve structure ensures accurate dosing of metering pump.
◎ Built in adjustable pressure relief valve automatically protects diaphragm and pump head components from overpressure damage.
◎ Pump heads made of PVC, PVDF, 316SS, alloy 20, Hastelloy and other materials are suitable for various materials.
◎ Double head parallel connection is optional, and single head flow can be adjusted separately.
◎ Optional pressure type double diaphragm leak detection (local/remote) alarm.
The main application
◎ Petroleum/chemical/oil refining process application.
◎ Power plant boiler water treatment.

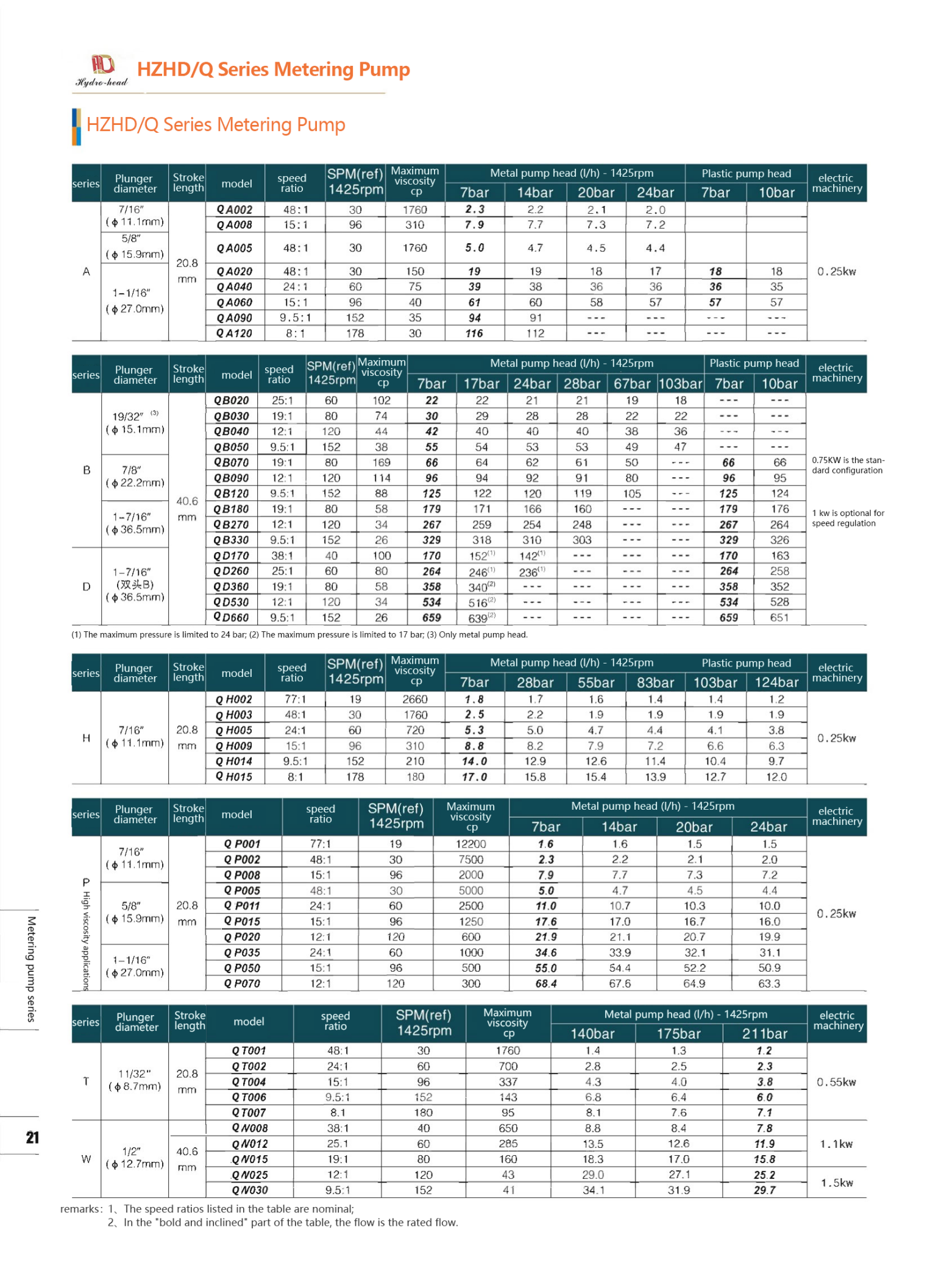

Materials of main components of pump head
enclosure
Provide accessories required by the system, such as filter, buffer, safety valve or back pressure valve.

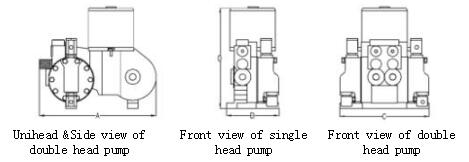

HZHD/Q series Outline drawing of hydraulic diaphragm metering pump

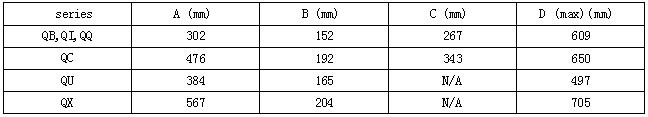

Product size

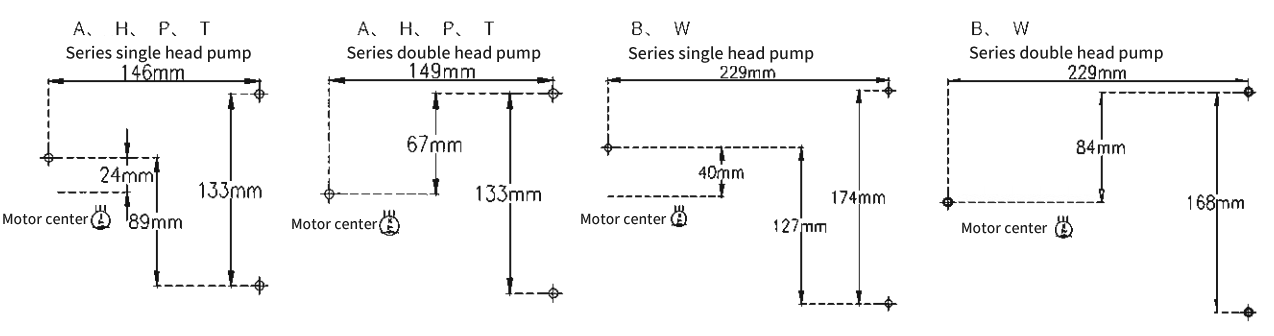

Product footing size
