FQ series Electromagnetic metering pump



Advantages & Features

  • Plastic housing, high strength, corrosion-resistant.
  • LED digital display, intuitive and easy to use.
  • Valve seat precision-machined from PTFE for enhanced corrosion resistance.
  • Simple structural design, economical price.
  • Valve spring made of Hastelloy C276.

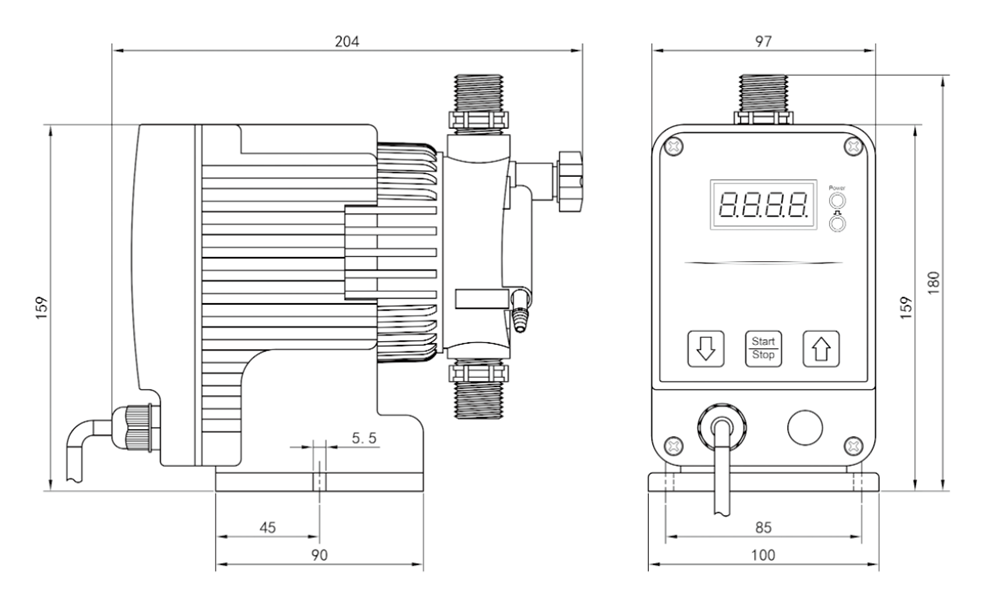

FQ Series Electromagnetic metering pump Installation Dimension Diagram Unit: mm





Technical Data

Model

Flow（L/H）

Pressure（Bar）

Power（W）

Connection Size

FQ 0904

9

3.5

40

6*4mm

FQ 1204

12

3.5

40

6*4mm

FQ 1503

15

2.5

40

6*4mm

FQ 2002

20

1.5

40

3/8”*1/4"inch

FQ 0907

9

7

50

6*4mm

FQ 1207

12

7

50

6*4mm

FQ 1505

15

5

50

6*4mm

FQ 2003

20

3

50

3/8”*1/4"inch



Liquid Ends Material

Component

Standard

Optional

Pumphead

PP

/

Diaphragm

PTFE

/

Valve body

PP

/

Valve ball

Ceramics

PTFE

Valve seat

PTFE

/

Valve spring

Hastelloy

/

Seals

FPM

EPDM
