1.Advanced Product Design

Ensures higher pump efficiency, a wide high-efficiency range, low vibration, low noise, and high strength.

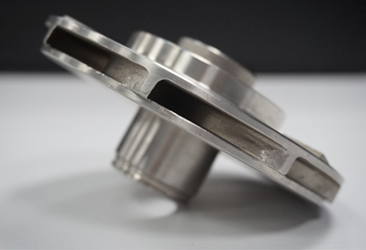

2.CAM Mold Manufacturing Combined with Precision Casting

Precisely dimensioned flow channels with excellent surface finish perfectly realize the designer's intent, resulting in high pump efficiency and a robust, aesthetically pleasing appearance.

3.High Versatility and Interchangeability

Modular design maximizes component commonality. Standard gauges are used for inspection, ensuring part interchangeability.

4.Professional After-Sales Service Team, Prompt Response

5.Customized Spare Parts Inventory, No Worries

Product Range

1.Design Standards

• API 610 (American Petroleum Institute Standard "Centrifugal Pumps for Petroleum, Heavy Chemical, and Gas Industry Services"), equivalent to ISO 13709.
• ASME B73.1 (American National Standard "Specification for Horizontal End Suction Centrifugal Pumps for Chemical Process")
• ASME B73.2 (American National Standard "Specification for Vertical In-Line Centrifugal Pumps for Chemical Process")
• ASME B73.3 (American National Standard "Specification for Sealless Horizontal End Suction Centrifugal Pumps for Chemical Process")
• API 685 (American Petroleum Institute Standard "Sealless Centrifugal Pumps for Petroleum, Heavy Chemical, and Gas Industry Services"), equivalent to ISO 15783.
• ISO 2858 (End Suction Centrifugal Pumps)
• IISO 5199 (Technical specifications for centrifugal pumps - Class II)
• SH/T 3148 (Engineering Technical Specification for Sealless Centrifugal Pumps in Petrochemical Industry)

2.Pump Materials

Carbon Steel, Chromium Steel, Austenitic Stainless Steel, Duplex Steel, Titanium & Titanium Alloys, Hastelloy, Monel, etc.
Magnetic Pumps: Magnetic Coupler: HC-276; Magnets: Sm2Co17; Sliding Bearings: SSiC (Sintered Silicon Carbide).

3.Sealing Options

Single or double mechanical seals optional. 17 seal flush plans available (Plan 01 to 65).

Packing seals optional for long-shaft pumps.

Magnetic Drive Pump solution for zero leakage requirements.

4.Inducer

An inducer can be fitted for applications requiring very low NPSH (Net Positive Suction Head). Confirmation with our technical department is required.

5.Cooling Jackets, Heating/Cooling Jackets

Can be furnished upon request. Please confirm with sales personnel.

6.Monitoring Devices for Bearing Temperature, Vibration, etc.

Pump casing and bearing housing are pre-prepared with mounting positions. Please specify requirements when ordering.

7.Pump Vent/Drain Holes, Jacket Connections, Oil Mist Lubrication Connections, etc.

Confirm types and dimensions with the application engineer during technical clarification.

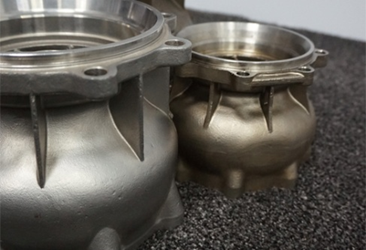

Magnetic Coupler Assembly

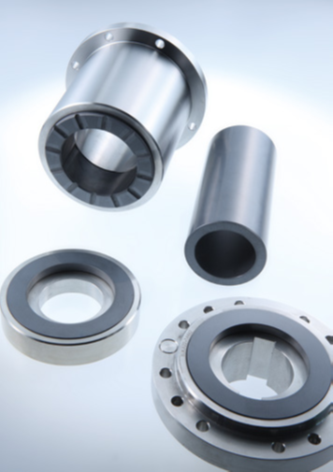

 Sliding Bearing Assembly
